Acoustic Baffles Vs. Acoustic Panels: Understanding The Difference

In the competitive landscape of commercial architecture and interior design, managing the acoustic environment has become as critical as the visual aesthetic. High-traffic areas such as open-plan offices, airport terminals, and educational institutions often face the challenge of excessive reverberation and noise pollution caused by hard surfaces. Architects and B2B procurement managers frequently find themselves weighing two primary solutions: acoustic baffles and acoustic panels. While both serve to dampen sound, their application, installation method, and impact on the baffle ceiling infrastructure differ significantly.

The primary difference lies in their orientation and installation: acoustic baffles are suspended vertically from the ceiling to intercept sound waves moving across a space, whereas acoustic panels are typically mounted flat against walls or ceilings to absorb direct sound reflections.

Choosing between these two systems requires a deep understanding of spatial volume and the specific acoustic needs of a project. For instance, a large hall might benefit from the rhythmic beauty of an aluminum baffle ceiling, while a small conference room might require the targeted absorption of wall panels. This guide will provide a comprehensive breakdown of the technical and aesthetic differences between these systems, exploring variations such as the curved aluminum baffle ceiling and the round tube aluminum ceiling, to help you determine the most effective acoustic strategy for your B2B project.

Table of Contents

1. Introduction to Acoustic Baffles & Panels

2. Industry Perspectives: Professional Insights on Acoustic Solutions

3. What Are Acoustic Baffles?

4. What Are Acoustic Panels?

5. Differences Between Acoustic Panels and Baffles

6. When & Where to Use Acoustic Panels

7. When & Where to Use Acoustic Baffles

8. Acoustic Baffles vs Acoustic Panels: Find Your Acoustic Solution

9. Conclusion

Introduction to Acoustic Baffles & Panels

Acoustic baffles and panels are specialized sound-absorbing tools designed to reduce echo and noise levels in interior spaces, utilizing materials like mineral wool, foam, or perforated metal within a baffle ceiling or wall-mounted framework.

Sound management is an essential pillar of modern building design. In an untreated room, sound waves reflect off hard surfaces—ceilings, floors, and walls—creating a "muddy" acoustic environment where speech becomes difficult to understand. Both baffles and panels work by converting sound energy into a small amount of heat through friction within their porous or perforated structures. When integrating these into an acoustic baffles ceiling, designers can achieve high Noise Reduction Coefficients (NRC) while maintaining a high-end architectural finish.

The evolution of these products has led to a wide variety of materials. For industrial or high-end commercial use, the aluminum baffle ceiling has become a preferred choice due to its fire resistance and durability. Unlike fabric alternatives, an aluminum baffle ceiling provides a crisp, linear look that can be customized into a curved aluminum baffle ceiling or a round tube aluminum ceiling to match the branding and flow of a corporate space. These systems are not just functional; they are integral to the architectural identity of the building.

For B2B stakeholders, the decision often involves balancing cost, installation speed, and long-term maintenance. An acoustic baffles ceiling offers the advantage of not obstructing air vents or lighting, while panels provide localized sound control. As we move further into this comparison, we will examine how the vertical suspension of a baffle ceiling provides a unique advantage in large, open-volume areas compared to the traditional flat-mounted panel approach.

Industry Perspectives: Professional Insights on Acoustic Solutions

Leading architectural and acoustic engineering platforms provide diverse viewpoints on how to optimize sound control using baffle ceiling systems and wall treatments.

To ensure a well-rounded understanding of the market, it is helpful to examine the stances of industry experts regarding the deployment of alarm smoke detectors and acoustic hardware.

• Unika Vaev Platform: This organization emphasizes that the vertical orientation of baffles provides more surface area for sound absorption compared to flat-mounted panels. Their view is that in large, open-concept spaces, the acoustic baffles ceiling is the most efficient way to manage noise because it intercepts sound waves twice—once as they rise and again as they reflect off the structural slab. They advocate for the use of high-design systems like the curved aluminum baffle ceiling to blend acoustics with art.

• Ecotone Platform: Focusing on industrial and specialized environments, this platform suggests that the choice between baffles and panels should be dictated by the "room's height and activity type." Their perspective is that panels are superior for low-ceiling rooms where vertical space is limited, while the baffle ceiling is the gold standard for gymnasiums and factories. They highlight that an aluminum baffle ceiling is particularly effective in environments where hygiene and fire safety are paramount.

• Toptide Architectural Standards: From a manufacturing and B2B supply perspective, the focus is on the precision of the suspension hardware. Their technical stance is that the effectiveness of an acoustic baffles ceiling depends on the spacing and height of the baffles. They recommend the round tube aluminum ceiling for projects requiring a softer, organic aesthetic, noting that the cylindrical shape naturally diffuses sound in multiple directions, further enhancing the acoustic performance of the baffle ceiling.

What Are Acoustic Baffles?

Acoustic baffles are vertical sound-absorbing panels suspended from the ceiling, designed to break up sound reflections and reduce reverberation within a baffle ceiling system.

Baffles are the go-to solution for spaces with high ceilings or large open floor plans. Because they hang vertically, they expose both sides of the absorbing material to the sound waves, effectively doubling the available absorption surface compared to a panel of the same size mounted against a wall. An acoustic baffles ceiling creates a rhythmic, linear look that can hide unsightly pipes, wires, and HVAC ducts without blocking airflow or light. This makes the baffle ceiling an incredibly functional choice for modern "industrial chic" designs.

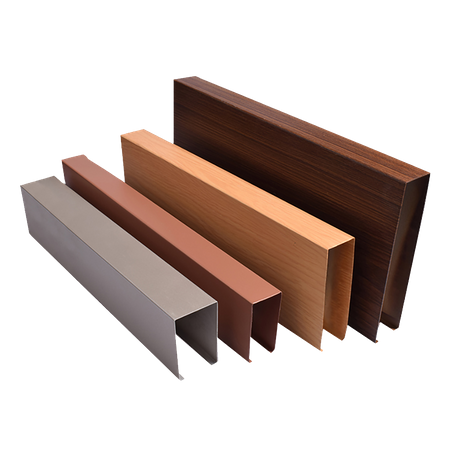

The versatility of the aluminum baffle ceiling allows for incredible design freedom. For example, a curved aluminum baffle ceiling can create a "wave" effect that guides the eye through a lobby or corridor. Meanwhile, a round tube aluminum ceiling offers a sleek, cylindrical profile that provides a distinct departure from traditional rectangular blades. These metal systems often feature micro-perforations and acoustic tissue backings, allowing them to function as a high-performance acoustic baffles ceiling while maintaining the clean lines and fire-safety ratings of high-grade aluminum.

In terms of installation, an aluminum baffle ceiling typically utilizes a carrier system. This allows for precise alignment and equal spacing, which is vital for maintaining the architectural integrity of the design. B2B facility managers appreciate these systems because individual baffles can be easily removed or adjusted to provide access to overhead utilities. Whether it is a standard linear baffle ceiling or a complex curved aluminum baffle ceiling, the system is designed for long-term durability and ease of maintenance in busy commercial environments.

What Are Acoustic Panels?

Acoustic panels are flat, sound-absorbing boards typically mounted directly to walls or ceilings to target specific reflection points and reduce direct sound bounce in a room.

While a baffle ceiling manages the overall volume of noise in a large space, acoustic panels are used for precision control. They are most commonly found in boardrooms, recording studios, and private offices where speech intelligibility is the highest priority. These panels are usually made from rigid fiberglass or mineral wool wrapped in fabric. Because they are mounted flat, they take up very little physical space, making them ideal for rooms with standard or low ceiling heights where a suspended baffle ceiling might feel too intrusive.

Panels are often strategically placed at "first reflection points"—the areas on a wall where sound from a person's voice or a speaker first hits. By absorbing this sound rather than letting it bounce back, panels prevent "slap back" echo. While they lack the 360-degree absorption of an acoustic baffles ceiling, they provide a targeted solution that can be color-matched to the interior decor. However, for B2B applications requiring a more permanent and fire-rated solution, many designers are moving toward perforated metal wall panels that mimic the aesthetic of an aluminum baffle ceiling.

It is important to note that panels can also be "cloud-mounted" horizontally from the ceiling. While this looks similar to a baffle ceiling, it functions differently. A horizontal ceiling cloud covers a specific area to provide localized absorption, whereas an aluminum baffle ceiling is usually a systemic installation covering a larger area to manage the room's total acoustic energy. Panels are the "snipers" of the acoustic world, while the baffle ceiling represents the "blanket" coverage needed for large-scale noise mitigation.

Differences Between Acoustic Panels and Baffles

The key differences between panels and baffles include their orientation, the surface area exposed to sound waves, their impact on ceiling height, and their suitability for different architectural volumes.

The most obvious difference is the axis of installation. Baffles hang vertically (on the Y-axis), while panels are usually mounted on the X-axis (walls or horizontal ceiling mounts). This vertical suspension is what allows the acoustic baffles ceiling to be so effective; sound waves traveling horizontally across a room are "intercepted" by the rows of baffles. In contrast, a flat-mounted panel only absorbs sound that hits it perpendicularly. This is why a baffle ceiling is often more efficient at reducing the overall "hum" of a busy office than wall panels alone.

[Image comparing vertical baffles versus horizontal panels]

Space requirements also differ. An aluminum baffle ceiling requires sufficient head height to hang without becoming a physical obstruction. In rooms with 10-foot ceilings or higher, a curved aluminum baffle ceiling or a round tube aluminum ceiling adds architectural interest. Panels, however, are the best choice for rooms with 8-foot ceilings where every inch of vertical space counts. Furthermore, the baffle ceiling is generally better for airflow and light diffusion, as the gaps between the blades allow air and light to pass through, whereas large panels can create "dead spots" in ventilation and lighting.

Comparison: Baffles vs. Panels

When & Where to Use Acoustic Panels

Acoustic panels should be used in small-to-medium-sized rooms with standard ceiling heights where targeted sound absorption is needed to improve speech clarity and privacy.

In a B2B setting, panels are indispensable for private meeting rooms and executive offices. Because these spaces are often smaller, the primary acoustic issue is sound bouncing off the walls and back into a microphone during a video conference. Placing panels on the walls at ear level provides an immediate improvement in audio quality. While a baffle ceiling might look impressive, it may not provide enough localized absorption for a small room's specific "hot spots."

Educational environments also rely heavily on panels. In classrooms, panels on the back wall can prevent the teacher's voice from echoing, ensuring that students in the front row and the back row hear with equal clarity. However, in larger university lecture halls, a combination of wall panels and an acoustic baffles ceiling is often required to manage the larger volume of air. The panels handle the direct reflections, while the aluminum baffle ceiling manages the long-distance reverberation.

Other ideal locations for panels include:

• Recording and broadcast studios.

• Home theaters and media rooms.

• Private medical consultation rooms.

• Small retail boutiques with low ceilings.

• Corridors where wall-to-wall sound bounce is a concern.

When & Where to Use Acoustic Baffles

Acoustic baffles should be used in large, open-volume spaces with high ceilings to manage long-reverberation times and provide a modern, linear architectural finish.

The baffle ceiling is the premier choice for infrastructure and public spaces. In an airport terminal, for example, the sheer volume of space means that sound can travel for a long time before hitting a wall. An aluminum baffle ceiling acts as a series of "sound traps" across the entire ceiling, catching noise before it can build up. The durability of an aluminum baffle ceiling is also a major factor here, as it can withstand the vibrations and airflow of a busy terminal for decades.

In "open-plan" offices, the acoustic baffles ceiling provides a way to define zones without using walls. By changing the spacing or the color of the baffle ceiling blades, designers can distinguish between a collaborative area and a quiet zone. Using a curved aluminum baffle ceiling over a lounge area can create a more relaxed, organic feel, while a round tube aluminum ceiling in the main work area provides a clean, professional aesthetic. The open nature of the baffle ceiling also ensures that the office stays cool and well-lit.

Other ideal locations for acoustic baffles ceiling systems include:

• Sports gymnasiums and indoor pools (moisture-resistant aluminum baffle ceiling).

• Shopping mall atriums and food courts.

• Museum galleries and exhibition halls.

• Industrial manufacturing plants.

• High-traffic transit hubs and subway stations.

Acoustic Baffles vs Acoustic Panels: Find Your Acoustic Solution

Determining the right solution involves analyzing the room's NRC requirements, aesthetic goals, and physical constraints to choose between the targeted absorption of panels or the systemic coverage of a baffle ceiling.

For a B2B project to be successful, the acoustic solution must be integrated early in the design phase. If the goal is a sleek, modern, and open look, the aluminum baffle ceiling is almost always the winner. It provides a "technical" look that fits well with modern corporate identities. For projects that want to push the boundaries of design, a curved aluminum baffle ceiling offers a way to turn a functional necessity into a stunning visual focal point.

However, if the project is a renovation of a historic building with low ceilings, panels may be the only viable option. In these cases, the focus shifts to how the panels can be disguised or integrated into the existing wall treatments. It is also common to see "hybrid" systems. A large cafeteria might use a baffle ceiling for the main seating area but switch to acoustic panels in the smaller booths or private dining sections. This allows for a tiered acoustic experience that matches the function of each sub-space.

Technical Performance Checklist

1. Room Height: If >10 feet, consider an aluminum baffle ceiling.

2. NRC Goal: If >0.80, use an acoustic baffles ceiling with high-density backing.

3. Fire Rating: For public spaces, a metal baffle ceiling is often a legal requirement.

4. Aesthetics: Choose between the linear baffle ceiling, organic round tube aluminum ceiling, or the integrated look of panels.

5. Accessibility: If access to the plenum is needed, a baffle ceiling carrier system is superior.

Conclusion

The choice between acoustic baffles and acoustic panels is not merely a matter of taste; it is a strategic decision that affects the functionality and comfort of a building. The baffle ceiling represents the cutting edge of systemic sound control, offering a unique combination of high-performance acoustics and bold architectural design. Whether you opt for the industrial strength of an aluminum baffle ceiling, the fluid beauty of a curved aluminum baffle ceiling, or the sophisticated geometry of a round tube aluminum ceiling, you are choosing a system built for the demands of modern B2B environments.

Ultimately, a successful acoustic strategy often employs both tools—using the acoustic baffles ceiling to handle the heavy lifting of noise reduction in large areas and panels to fine-tune the experience in smaller rooms. By understanding these differences, architects and developers can create spaces that are as quiet and productive as they are beautiful. The baffle ceiling remains the most versatile and durable solution for the future of commercial interior design.
